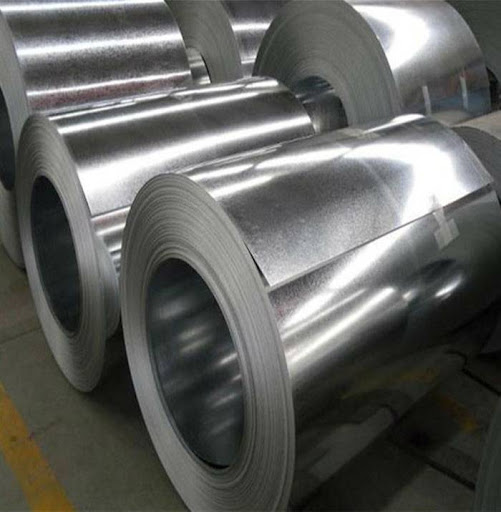

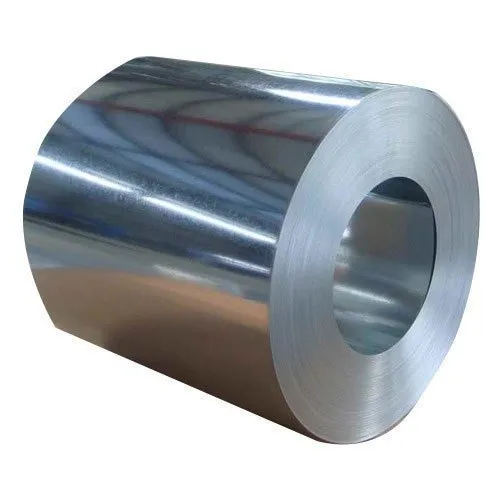

SPCC Galvanized Steel Coil

SPCC galvanized steel coil is a high-quality cold-rolled steel that undergoes a hot-dip galvanizing process to provide enhanced corrosion resistance. The “SPCC” designation refers to a general-purpose cold-rolled carbon steel with good surface quality and moderate strength, commonly used for applications requiring good formability. The steel is zinc-coated (denoted by the “galvanized” term) to protect against corrosion, making it ideal for use in harsh or outdoor environments. SPCC galvanized steel coils are widely used in automotive, construction, home appliances, and electrical industries, offering excellent weldability, smooth surface finish, and resistance to corrosion. This makes it a reliable and durable material for products exposed to moisture, humidity, and other corrosive elements, where both strength and longevity are required.

SPCC Galvanized Steel Coil Standard Specification

Standard	ASTM, AISI, SUS, JIS, EN, DIN, BS, GB, etc.
Material	Dx51D, Dx52D, Dx53D, DX54D, S220GD, S250GD, S280GD, S350GD, S350GD, S550GD; SGCC, SGHC, SGCH, SGH340, SGH400, SGH440, SGH490,SGH540, SGCD1, SGCD2, SGCD3, SGC340, SGC340 , SGC490, SGC570; SQ CR22 (230), SQ CR22 (255), SQ CR40 (275), SQ CR50 (340), SQ CR80(550), CQ, FS, DDS, EDDS, SQ CR33 (230), SQ CR37 (255), SQCR40 (275), SQ CR50 (340), SQ CR80 (550); or as Customer’s Requirement
Thickness	Hot Rolled: 0.12~3.0mm Cold Rolled: 1.20~4.60mm or As Your Request
Width	600mm~2200mmm, or As Your Request Regular Width: 1000mm, 1250mm, 1500mm
Tolerance	Thickness: ±0.01mm; Width: ±2mm
Coil ID	508~610mm or As Per Your Request
Coil Weight	3~5 Tons or As Per Your Request
Zinc Coating	30~275g/m2
Spangle	Big Spangle, Regular Spangle, Mini Spangle, Zero Spangle
Surface Treatment	Black Painted, PE Coated, Galvanized or Customized all available

SPCC Galvanized Steel Coil Equivalent Material

Grade	Euronorm	China GB	Japanese JIS	US ASTM	German
	EN10130-2006	GBT 2518-2008	JIS:G3302-2005	ASTM A653M	Q/SGZGS 324.3-2011
SPCC	DC01	DC01	SPCC	CS TypeC	St12

SPCC Galvanized Steel Coil Metal Content

Grade	Element	C	Mn	P	S
SPCC	Min.	-	-	-	-
	Max.	0.15	0.6	0.1	0.05

• Tensile strength: ≥270 MPa
• Yield strength: 120~280 MPa
• Elongation: 28-38%

Our SPCC Galvanized Steel Coil inventory is stored in ISO-certified warehouses equipped with humidity control (≤60% RH) to preserve zinc coating integrity. Strategically located near Shanghai and Guangzhou ports, facilities feature wide-span shelving systems to store coils vertically, preventing edge damage. Real-time RFID tracking enables efficient stock management, while 10-ton overhead cranes and coil grabbers ensure safe handling. Anti-static flooring and dust-proof zones minimize surface contamination. Partnering with global logistics networks, we guarantee lead times of 10–25 days for FOB/CIF shipments, supported by 24/7 digital inventory access and flexible JIT (Just-in-Time) delivery options.
