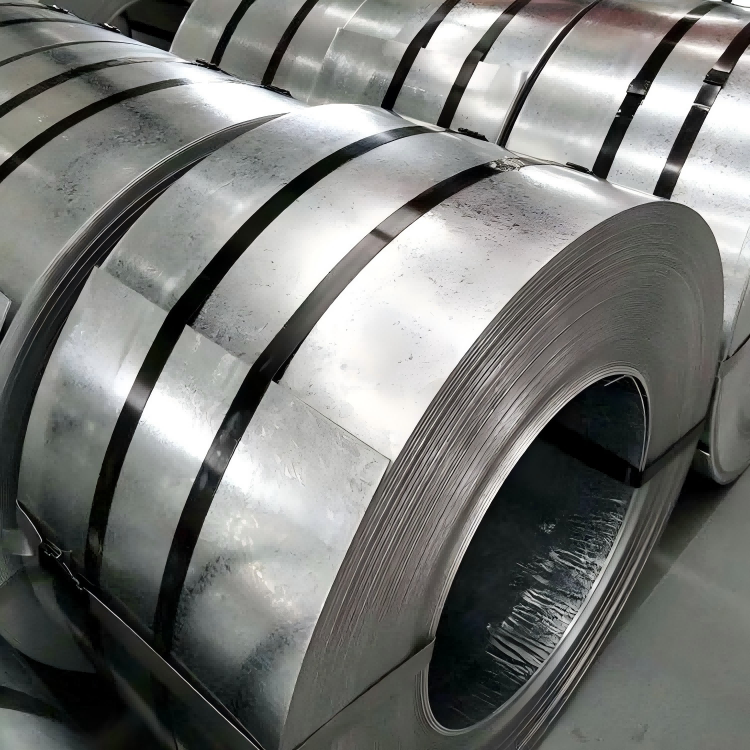

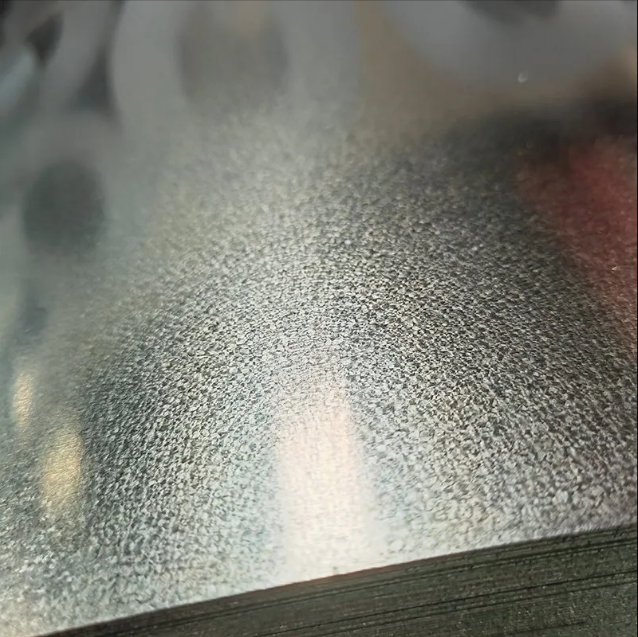

DX54D+Z Galvanized Steel Coil

DX54D+Z is a hot-dip galvanized steel coil designed for applications that require excellent formability and corrosion resistance. The “DX54D” grade indicates a steel with moderate strength, suitable for cold working processes such as bending, stamping, and drawing. The “+Z” signifies a zinc coating applied through the galvanizing process, which provides an effective barrier against corrosion and enhances the steel’s durability, especially in outdoor or harsh environments. DX54D+Z coils are commonly used in industries such as automotive, construction, and appliances, where both strength and long-term resistance to weathering are critical. The steel offers good weldability, smooth surface quality, and excellent protection from corrosion, making it ideal for components exposed to moisture and atmospheric conditions.


DX54D+Z Galvanized Steel Coil Standard Specification

Standard	ASTM, AISI, SUS, JIS, EN, DIN, BS, GB, etc.
Material	Dx51D, Dx52D, Dx53D, DX54D, S220GD, S250GD, S280GD, S350GD, S350GD, S550GD; SGCC, SGHC, SGCH, SGH340, SGH400, SGH440, SGH490,SGH540, SGCD1, SGCD2, SGCD3, SGC340, SGC340 , SGC490, SGC570; SQ CR22 (230), SQ CR22 (255), SQ CR40 (275), SQ CR50 (340), SQ CR80(550), CQ, FS, DDS, EDDS, SQ CR33 (230), SQ CR37 (255), SQCR40 (275), SQ CR50 (340), SQ CR80 (550); or as Customer’s Requirement
Thickness	Hot Rolled: 0.12~3.0mm Cold Rolled: 1.20~4.60mm or As Your Request
Width	600mm~2200mmm, or As Your Request Regular Width: 1000mm, 1250mm, 1500mm
Tolerance	Thickness: ±0.01mm; Width: ±2mm
Coil ID	508~610mm or As Per Your Request
Coil Weight	3~5 Tons or As Per Your Request
Zinc Coating	30~275g/m2
Spangle	Big Spangle, Regular Spangle, Mini Spangle, Zero Spangle
Surface Treatment	Black Painted, PE Coated, Galvanized or Customized all available

DX54D+Z Galvanized Steel Coil Equivalent Material

Grade	Euronorm	China GB	Japanese JIS	US ASTM
	EN 10346:2009	GBT 2518-2008	JIS:G3302-2005	ASTM  A653M
DX54D+Z	DX54D+Z	DX54D+Z	SGCD3	DDS TypeC

DX54D+Z Galvanized Steel Coil Metal Content

Grade	Element	C	Si	Mn	P	S	Ti
DX54D+Z	Min.	-	-	-	-	-	-
	Max.	0.12	0.5	0.6	0.12	0.045	0.3

• Tensile strength: 260~350MPa
• Yield strength: 120~220MPa
• Elongation: ≥36%

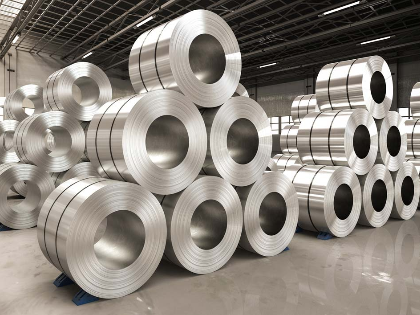

Our modern warehouse is fully equipped to handle the safe storage and efficient management of DX54D+Z Galvanized Steel Coils. The coils are organized by type, thickness, and size, allowing for quick retrieval and fast order processing. To maintain the quality of the galvanized coating, our climate-controlled warehouse ensures that the coils are protected from extreme temperatures and moisture. With an advanced inventory management system in place, we can easily track stock levels and ensure timely fulfillment of orders. This well-organized system guarantees that your DX54D+Z Galvanized Steel Coils will be delivered promptly and in pristine condition, ready for your project’s needs.
