Gnee steel is a China manufacturer of hot-dip galvanized steel coils. Our factory has two galvanized coil production lines with an annual output of 300,000 tons, which can meet fast delivery. Gnee steel can produce ASTM A653 DX51D galvanized steel coil suitable for cold forming.
Types :Galvanized steel coil
Thickness :0.25-0.65mm
Width :1000-1200mm
Inside Diameter :508/610mm
Share:
Introduction

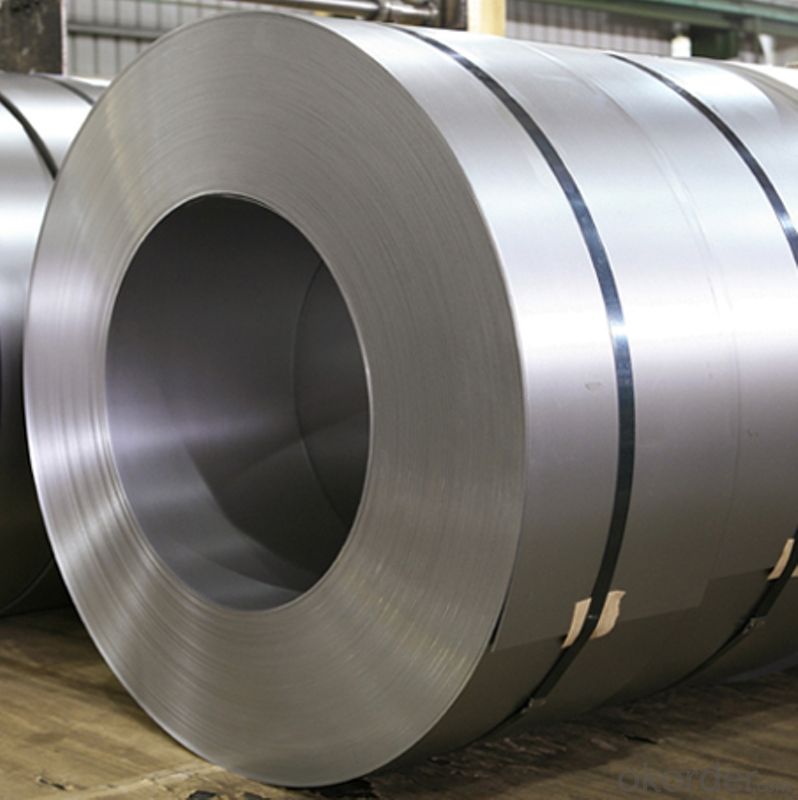

Hot Dipped Galvanized Steel Coil

Gnee steel is one of the best galvanized steel coils supplier and manufacturer in China, Our galvanized steel coil production line has an annual production capacity of 300,000 tons and a manufacturing speed of 150m/min. We can manufacture and sell galvanized steel coils with a width of 800-1250mm and a coating weight of 60-300g/m3. We manufacture galvanized steel coils according to EN 10346, ASTM A653 standard. We have sufficient galvanized steel coil stock for fast delivery.

Hot Dipped Galvanized Steel Sheet in Coil (GI) is produced by passing the Full Hard sheet which has undergone the acid washing process and rolling process through the zinc pot, thereby applying zinc film to the surface. It has excellent corrosion resistance, paintability, and workability due to Zinc’s characteristics. Usually, hot-dipped galvanized steel sheet and galvanized steel coil process and specifications are basically the same.

Technical Data

Surface Structure

Surface Structure Zero Spangle Big Spangle
Weight of zinc coating Zinc > 20g/sm Zinc > 30g/sm
Surface Finish Galvanized Steel Galvanized Steel

Spangled galvanized steel coils is the spangle obtained by the condensation of the zinc coating under normal conditions after galvanizing. It is mainly used in buildings and other places where there is little direct contact with the human body.

Galvanized steel coils without spangles are mainly produced through a special production process to control the lead in the zinc pot to a certain level, or after the strip steel is out of the galvanized pot, it undergoes special treatment to control the spangles to less than a certain level. Mainly used in home appliance housing


Hot Dipped Galvanized Steel Coil&Sheet Production

The manufacturing of galvanized steel coil&sheet with good weather resistance, primarily used in construction.​

Galvanized Steel Coil Supplier


Galvanized steel coils production process:

  1. Uncoiler
  2. Welder
  3. Entry Looper
  4. Pre-treatment
  5. Annealing Furnace
  6. Zinc Pot
  7. Cooling Tower
  8. Water Quench Tank
  9. Skin Pass
  10. Tension Leveler
  11. Passivation Coater
  12. Exit Looper
  13. Recoiler


The production and processing of galvanized steel coils can be divided into three steps: first, the entire coil is pickled to remove rust and dirt, so that the surface of the galvanized steel strip can achieve a bright and clean effect; after pickling, pass ammonium chloride or zinc chloride It is cleaned in an aqueous solution or a mixed aqueous solution of ammonium chloride and zinc chloride, and then sent to the hot-dip plating tank for the galvanizing process; after the galvanizing process is completed, it can be put into storage and packaged.


Surface treatment typeCodeFeature
Chromic acid treatment C Good corrosion resistance, suitable for bare state
Chromic acid treatment + oiling S Good corrosion resistance
Phosphoric acid treatment (including sealing treatment) P A certain degree of corrosion resistance, good paint performance
Phosphoric acid treatment (including sealing treatment) + oiling Q It has certain corrosion resistance, good paint performance, and prevents rust during transportation and storage
Phosphoric acid treatment (excluding sealing treatment) T A certain degree of corrosion resistance, good paint performance
Phosphoric acid treatment (excluding sealing treatment) + oiling V Have certain corrosion resistance, good paint performance, and prevent rust
Oiled O Prevent rust during transportation and storage
No treatment M Suitable for immediate painting

Chromate treatment of galvanized steel coils is also called passivation treatment. Through passivation treatment, the surface structure and gloss of the galvanized layer can be improved, the corrosion resistance and service life of the galvanized layer can be improved, and the bonding force of the coating and the base metal can be improved.The purpose of oiling galvanized steel coils is a protective layer is formed on the surface of the steel coil to prevent the surface from rusting.

Types Of Zinc Coating Of Galvanized Steel Coil
Hot-dip galvanized coils are divided into pure zinc coating and zinc-iron alloy coating according to the coating. Their common point is that the zinc content of the zinc solution in the zinc pot is the same. The difference is that the zinc-iron alloy adds an alloying process.

Pure Zinc Coating
In the hot-dip galvanizing production line, the pre-treated steel strip is immersed in the molten zinc bath to obtain the coating. The zinc content in the molten zinc solution should not be less than 99%.

Zinc-Iron Alloy
A zinc-iron alloy layer is formed on the entire coating through an alloying treatment process, and the iron content in the alloy coating is usually 8-15%. During the alloying process, the galvanized steel coil is heated to 550-560°C in an alloying furnace in 5-10 seconds, so as to convert all the pure zinc layer into iron-zinc alloy. Its weldability, coating performance, heat resistance, and corrosion resistance are better than ordinary galvanized sheets.

For example:

EN 10346 DX51D+Z is pure zinc;
EN 10346 DX51D+ZF is zinc-iron alloy coating.

Galvanized Coating Layer

 Galvanized Steel Coil Supplier
  • Anti-Finger printing ,Chromated, Oiled/ non-oiled
  • Zn Plating Layer (20-120g/sm)
  • Cold Rolled Steel Sheet


American ASTM A653 Standard Galvanized Steel Sheet & Coil

  • Commercial Steel (CS Types A, B, and C)

Commercial Steel is a low-carbon cold-formed steel, such as galvanized steel roof forming

  • Forming Steel (FS Types A and B)

Requires higher drawability than Commercial Steel, such as for lamp cover forming

  • Deep Drawing Steel (DDS)
  • Extra Deep Drawing Steel (EDDS)
  • Structural Steel (SS) – (33,37,40,50,80)
  • High Strength Low Alloy Steel (HSLAS)


European EN 10346 Standard Galvanized Steel Coil

Low carbon steel for cold forming (DX51D – DX54D)

  • DX51D is equivalent to Commercial Steel, curved and profiled
  • DX52D is equivalent to Forming Steel
  • DX53D is equivalent to Deep Drawing Steel
  • DX54D is equivalent to Extra Deep Drawing Steel

Structural Steels (S220GD – S350GD)

S220GD,S250GD,S280GD,S320GD,S350GD

Use structural steel for high load-bearing capacity, with a yield strength of 220-350


Galvanized Steel Coil Uses

Galvanized steel coil has a wide range of applications, and its advantage is that it has a long anti-corrosion period. It is mainly used for home appliances, office panels, roof sheets, automotive panels, construction and substrate of prepainted steel coils.

Car board

The use of automotive plates must first be stamped and formed, and the steel plate is stamped into the required shape and size of the part.

Then spot welding, as an important welding method for thin plate connection, has a wide range of applications in the manufacturing industry, especially in the automotive industry.

Galvanized roof sheet

The performance requirements of galvanized roof panels mainly include the mechanical properties of the material (tensile strength, yield strength, elongation), coating performance (coating type, coating thickness and coating adhesion)

Home appliance office board

Including air conditioners, washing machines, refrigerators, photocopiers, etc., household galvanized sheets are mainly used for general forming applications and stamping.

Substrate

Another use of galvanized steel coils is to be used as the substrate of prepainted steel coils. prepainted steel coils have polyethylene coatings than galvanized coils and are more durable.
