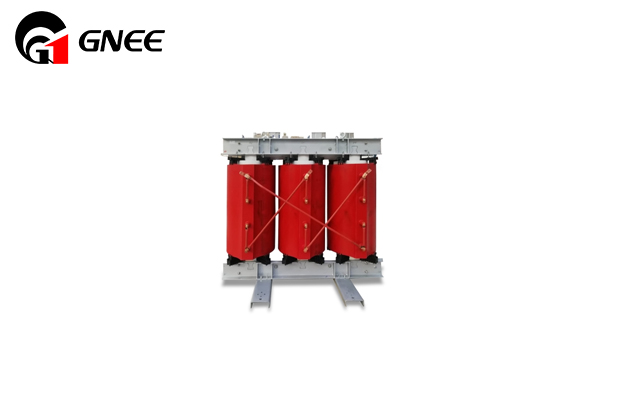

1500kVA Three Phases Dry Type Transformer

1500kVA Three Phases Dry Type Transformer is structurally distinguished by subsection cylindrical windings cast into formation by chopped glass fiber with axial air passageways provided inside to permit heat diffusion. The appropriate cast technology helps resin penetrate to every gap between windings, layers and subsections to ensure the electrical insulation strength and a low partial discharge value (≤ 5pc). Prevention of fracturing on castings, restraint of bubble in the casting and reduction of partial discharge value to a minimum are always considered a great challenge to worldwide transformer manufacturers and critical to the manufacturing of cast resin dry-type transformer.

Application: Power, Electronic, Instrument, Lighting, Rectifier

Phase: Three

Core: Core-type Transformer

Currency: US$

Quote Now

Send Email

Product features:

1.High reliability: Due to the absence of liquid insulation, dry-type transformers are not prone to liquid leakage during operation, thus offering higher reliability.

2.Environmentally friendly: Dry-type transformers do not require fire and explosion protection equipment, and do not produce toxic gases, making them more environmentally friendly.

3.Easy maintenance: Dry-type transformers do not require maintenance and inspection of cooling systems due to the absence of cooling liquids, reducing maintenance costs and workload.

4.Wide applicability: Dry-type transformers can be used in various environments, including residential areas, commercial areas, and industrial areas.

01	Production Descriptions	Cast Resin Dry Type Rectifier Transformer
02	Reference standards	IEC 60076
03	Capacity	630kVA
04	Voltage (HV)	11kV
05	Voltage (LV)	0.4kV
06	Applied in	Power Energy Industry
07	Impedance %	6~8%
08	Connections (Vector Group)	Dyn11
09	Frequency	50Hz/60Hz
10	Tapping Range	±2×2.5%, NLTC/OLTC
11	Core materials	Silicon Steel
12	Winding materials	Copper
13	Noise Level (dBA)	As per IEC Specifications
14	Cooling method	AN/AF
15	Optional Accessories	Temperature sensor
16		Temperature control
17		Cooling fans
18		Skid-type underbase
19		Transformer wheels
20		Current transformer
21		Protective Enclosure(IP2X)

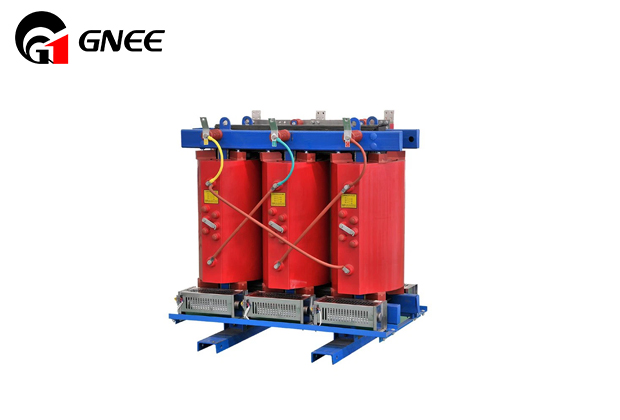

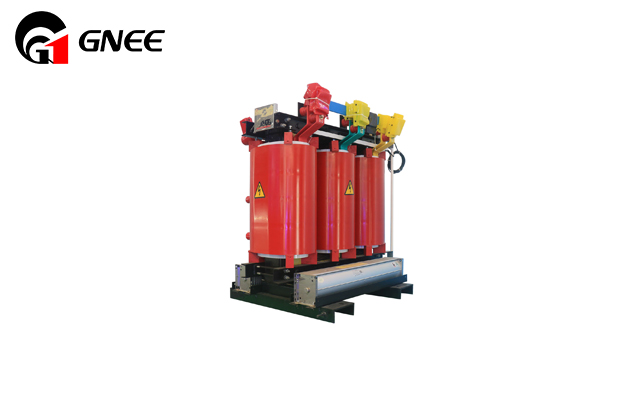

GNNE 1500kVA Three Phases Dry Type Transformer

product-750-750

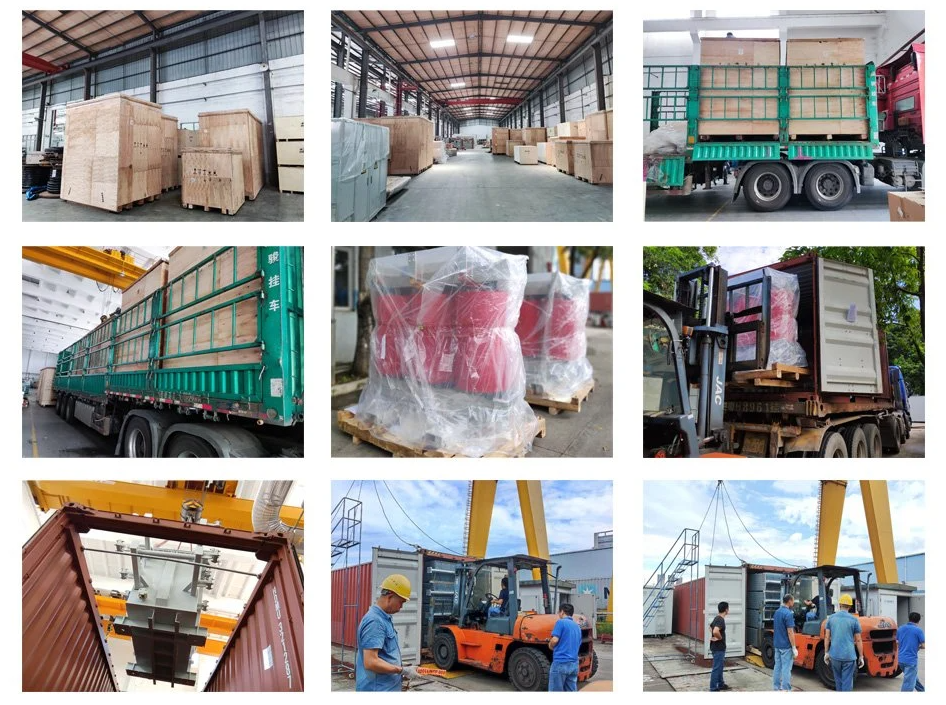

Packaging & Shipping

OUR GNEE

Amidst the vast land of China and the majestic Taihang Mountains lies Anyang, Henan Province, located on the eastern foothills of the Taihang mountain range. It is one of the eight ancient capitals of China and home to an outstanding steel supply chain enterprise – GNEE GROUP.

GNEE GROUP, established in 2008 with a registered capital of 5 million yuan, has grown into a comprehensive steel supply chain enterprise after more than a decade of hard work and perseverance. It has five subsidiaries located in different countries and regions, including Anyang, Tianjin, Hong Kong, Zhengzhou, and Singapore, and its influence has reached out around the world.

GNNE Company

dry type transformer supplier cast coil transformer

FAQ
Q: How to buy it? What about the delivery?
A: Please contact me by email or online, let me know your situation, I will give you professional solution. We have shipping agent can choosing the cheapest and fastest delivery. FOB, CIF, C&F or EXW are no problem for us.
Q: Could you offer some spare parts?
A: Yes, no problem.
Q: What about the maintenance?
A: All the goods past the test, maintenance is very easy.
Q: What is the standard of package?
A: Export standard package or special package according to customer’s requirement.
Q: Why should I choose GNEE?
A: After comparing the quality, delivery, and price of the same products, you will find out the answer.
