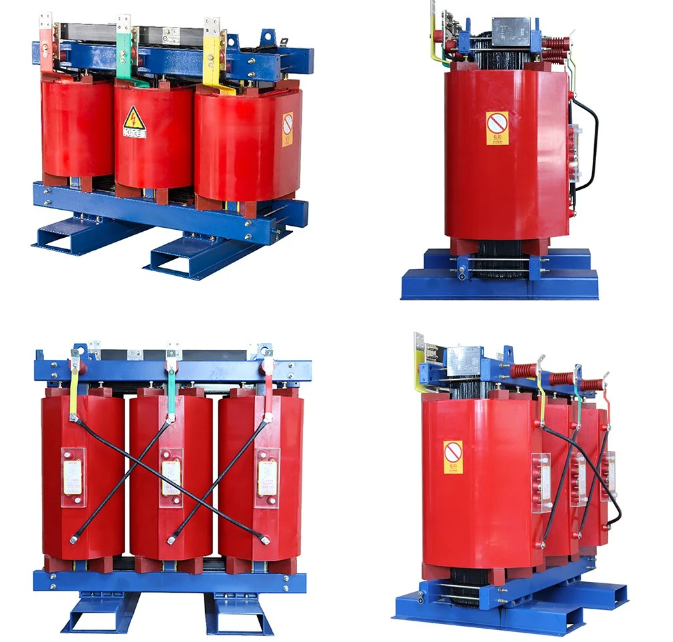

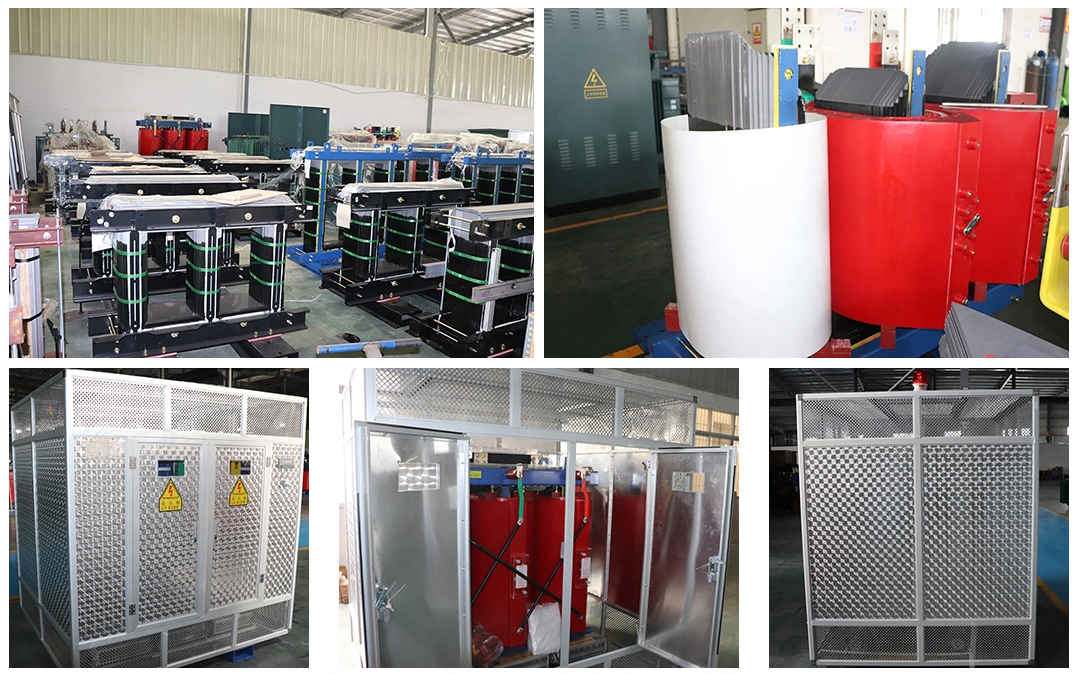

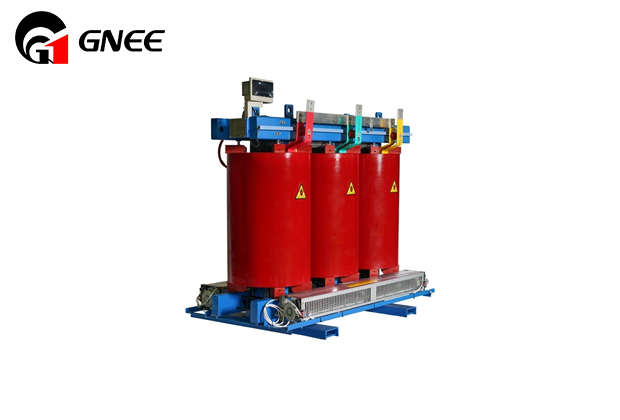

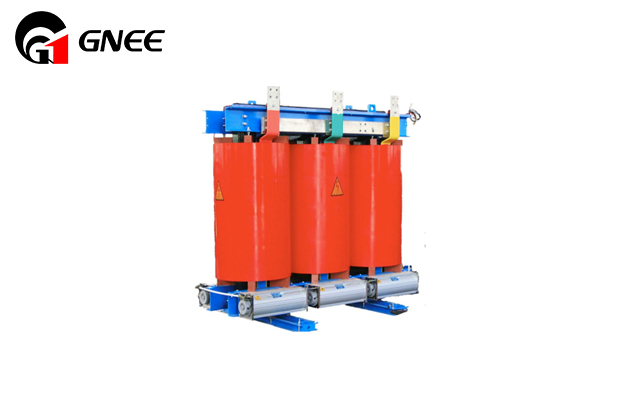

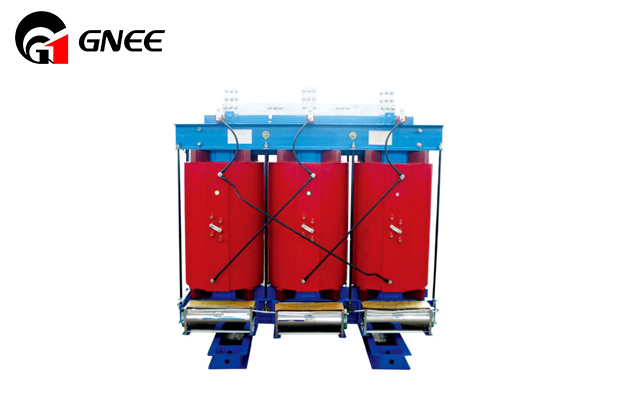

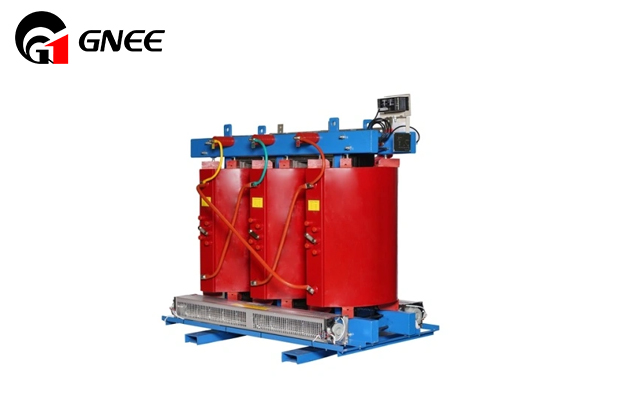

10KV Class Three Phase Epoxy-resin Dry-type Transformer

The 10KV Class Three Phase Epoxy-resin Dry-type Transformer can perform power distribution work for heavy load centers represented by commercial districts, factories, and shipyards. Daelim 10 KV Class Three Phase Epoxy-resin Dry-type Transformer uses silicone resin as raw material for vacuum pressure packaging. It can be a low-energy distribution transformer that can work efficiently in harsh environments such as acid and alkali under the condition of low maintenance frequency.
Application: Power, Electronic, Instrument, Lighting, Rectifier, Audio
Phase:Three
Core: Core-type Transformer
Cooling Method: Dry-type Transformer
Share:
Product Parameters
Features
1. Low loss, low partial discharge, low noise, strong heat dissipation, and can be operated at 120% rated load under forced air cooling.
2. It has good moisture-proof performance and can operate normally under 100% humidity. It can be put into operation without pre-drying after shutdown.
3. It is safe to operate, fire-resistant, non-polluting, and can be installed directly in the load center.
4. Equipped with a complete temperature protection control system to provide reliable protection for the safe operation of the Dry-type Transformer.
5. Maintenance-free, simple installation and low overall operating cost.
6. According to the operation research of the products that have been put into operation, the reliability of the products has reached the international advanced level.

10KV Class Three Phase Epoxy-resin Dry-type Transformer
Rated capacity: 30-2500kVA      High Voltage(KV): 10       Low voltage(KV): 0.4
Connection group designation: Dyn11 /Yyno     Insulation level: LI75AC35/LI0AC3

Rated Capacity
kVA
Load loss kW load loss kW No-load current% PK(W) Short circuit impedance% LPA (AN ) dB SIZE
L*B*H(mm)
Body size
  (including feet)
Weight (KG) installation size
100ºC(B) 120ºC(B) 145ºC(B)
200 170 2135 2275 2440 0.4 4 50   1550×760×1250 1600×1450×2200 2420 660×660
250 195 2330 2485 2665 0.4 4 50   1580×760×1280 1600×1450×2200 2480 660×660
315 235 2945 3125 3355 0.3 4 52  1530×760×1320 1650×1500×2200 2530    660×660
400 265 3375 3590 3850 0.3 4 52  1560×760×1380 1700×1500×2200 2810    660×660
500 305 4130 4390 4705 0.3 4 53  1570×920×1380 1800×1500×2200 3190    660×820
630 350 5050 5365 5760 0.3 6 54  1570×920×1400 1900×1500×2200 3200    820×820
800 410 5895 6265 6715 0.3 6 55  1600×920×1400 1900×1600×2200 3500    820×820
1000 470 6885 7315 7885 0.2 6 55  1700×1170×1480 2000×1600×2200 4100    820×1070
1250 550 8190 8720 9335 0.2 6 57  1720×1170×1500 2000×1700×2200 4690    820×1070
1600 645 9945 10555 11320 0.2 6 58  1730×1170×1530 2000×1700×2200 5420    1070×1070
2000 850 12240 13005 14005 0.2 6 60  1750×1170×1550 2000×1750×2200 5940    1070×1070
2500 850 12240 13005 14005 0.2 6 60   1800×1170×1650   2100×1800×2200  7100  1070×107
