DX52D+Z Galvanized Steel Coil

DX52D+Z is a hot-dip galvanized steel coil known for its excellent corrosion resistance, commonly used in a variety of industrial and commercial applications, such as construction, automotive, and home appliances. The “DX52D” grade indicates a steel with good formability, suitable for cold working and moderate structural applications. The “+Z” designation signifies a zinc coating applied through the hot-dip galvanizing process, providing a protective layer that enhances durability and extends the lifespan of the steel when exposed to harsh environmental conditions. DX52D+Z coils are known for their smooth surface finish, high weldability, and resistance to corrosion, making them ideal for products exposed to moisture, weathering, and other corrosive agents.

DX52D+Z Galvanized Steel Coil Standard Specification

Standard	ASTM, AISI, SUS, JIS, EN, DIN, BS, GB, etc.
Material	Dx51D, Dx52D, Dx53D, DX54D, S220GD, S250GD, S280GD, S350GD, S350GD, S550GD; SGCC, SGHC, SGCH, SGH340, SGH400, SGH440, SGH490,SGH540, SGCD1, SGCD2, SGCD3, SGC340, SGC340 , SGC490, SGC570; SQ CR22 (230), SQ CR22 (255), SQ CR40 (275), SQ CR50 (340), SQ CR80(550), CQ, FS, DDS, EDDS, SQ CR33 (230), SQ CR37 (255), SQCR40 (275), SQ CR50 (340), SQ CR80 (550); or as Customer’s Requirement
Thickness	Hot Rolled: 0.12~3.0mm Cold Rolled: 1.20~4.60mm or As Your Request
Width	600mm~2200mmm, or As Your Request Regular Width: 1000mm, 1250mm, 1500mm
Tolerance	Thickness: ±0.01mm; Width: ±2mm
Coil ID	508~610mm or As Per Your Request
Coil Weight	3~5 Tons or As Per Your Request
Zinc Coating	30~275g/m2
Spangle	Big Spangle, Regular Spangle, Mini Spangle, Zero Spangle
Surface Treatment	Black Painted, PE Coated, Galvanized or Customized all available

DX52D+Z Galvanized Steel Coil Equivalent Material

Grade	Euronorm	China GB	Japanese JIS	US ASTM
	EN 10346:2009	GBT 2518-2008	JIS:G3302-2005	ASTM  A653M
DX52D+Z	DX52D+Z	DX52D+Z	SGCD1	CS TypeC CS TypeB

DX52D+Z Galvanized Steel Coil Metal Content

Grade	Element	C	Si	Mn	P	S	Ti
DX52D+Z	Min.	-	-	-	-	-	-
	Max.	0.12	0.5	0.6	0.12	0.045	0.3

• Tensile strength: 270~420MPa
• Yield strength: 140~300MPa
• Elongation: ≥26%

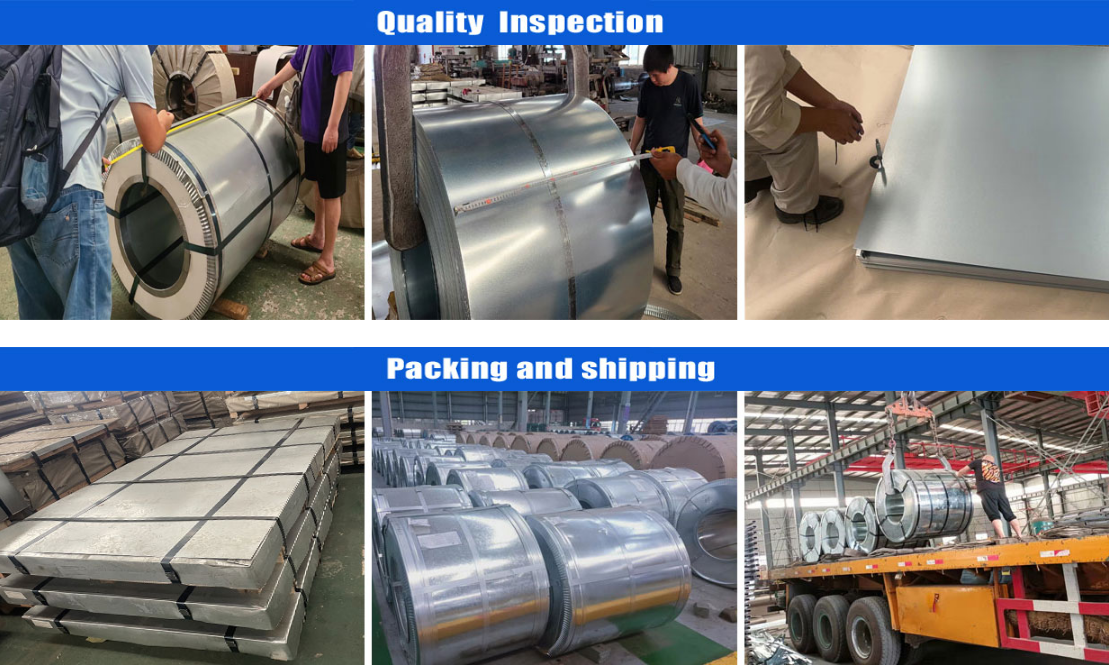

Our advanced warehouse facilities are designed to handle the safe storage of DX52D+Z Galvanized Steel Coils, ensuring their protection and easy access for timely delivery. The warehouse is organized with dedicated spaces for different coil sizes and specifications, optimizing the storage and retrieval process. To preserve the quality of the galvanized coating, the warehouse is climate-controlled, minimizing exposure to moisture and temperature extremes. With state-of-the-art inventory management systems, we ensure precise tracking and efficient order fulfillment. Whether you’re ordering large quantities or specific coil sizes, our DX52D+Z Galvanized Steel Coils are stored securely and ready to be shipped as per your requirements, ensuring prompt and reliable delivery.
