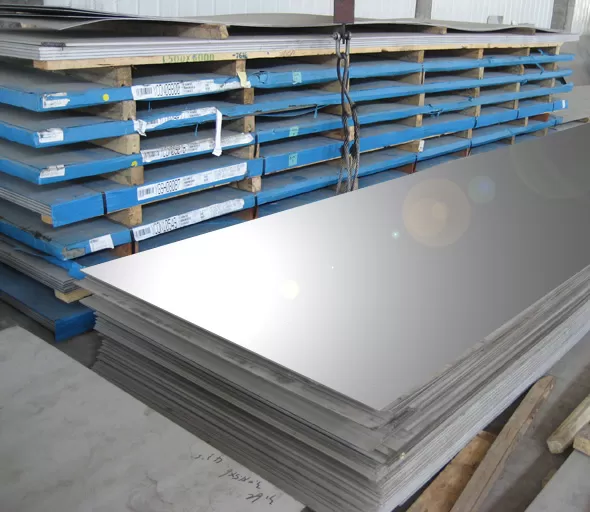

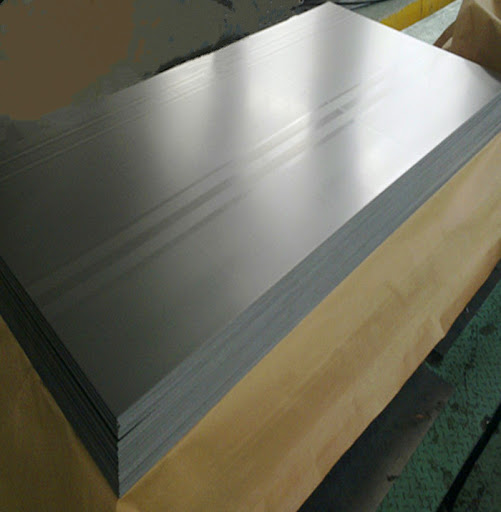

DC01 Cold Rolled Steel Sheet
DC01 Cold Rolled Steel Sheet
DC01 Cold Rolled Steel Sheet
DC01 Cold Rolled Steel Sheet
DC01 Cold Rolled Steel Sheet
DC01 Cold Rolled Steel Sheet
DC01 Cold Rolled Steel Sheet
DC01 Cold Rolled Steel Sheet

DC01 Cold Rolled Steel Sheet

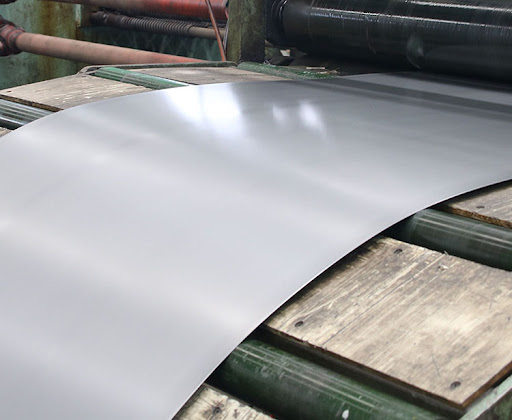

Cold-rolled ms steel sheet is a plate obtained by rolling a slab using a rolling mill. The production process includes: first heating the steel billet to a moderate temperature, and then rolling and stretching it. Cold plates have high surface precision, high hardness, and good corrosion resistance.
Types :DC01 Cold Rolled Steel Sheet
Thickness :0.2 mm-4 mm
Width :600mm--1500mm
Length:Customized
Share:
Introduction
Cold-rolled ms steel sheet is a plate obtained by rolling a slab using a rolling mill. The production process includes: first heating the steel billet to a moderate temperature, and then rolling and stretching it. Cold plates have high surface precision, high hardness, and good corrosion resistance.
They are usually used to manufacture containers, pipes, etc.

CR steel sheets have good processability, with good flatness and excellent surface, are available with different thickness and width combinations; Are mainly used to manufacture the high value-added products in automotive and appliance, beverage packaging, electronic, electrcial moor and building etc. The CR steel sheet include the uncoated steel steel, galvanzied steel sheet, tin plate and TFS, precoated steel sheet and electrical steel steel, etc.

The cold rolled plate has a good mechanical properties and process properties (such as higher strength, lower yield limit, good deep drawability, etc.).

Product Advantages

1. Wide Specifications Range;

2. Pure steel chemical composition;

3. Outstanding mechanical properties;

4. Good performance after welding;

5. Good shape and high precision;

6. Excellent corrosion-resistant and long service life.

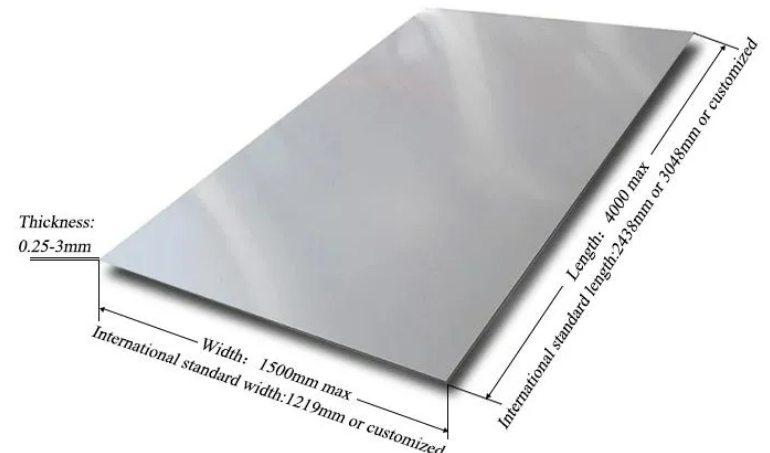

Specification
Standard JIS G3141,DIN1623,EN10130
Material SPCC, SPCD SPCE,Q195,DC01,DC02,DC03,DC04,ST12
Thickness 0.10-3 mm
Width 20-1500 mm,Normal width is 914/1000/1219/1250/1500 mm
Finish General, bright, dull and mirror finish, oiled or non-oiled
Length Regular Or As per the client's request
Weight Calculation Weight(kg)=Thickness(mm)*Width(m)*Length(m)*Density(7.85g/cm3)

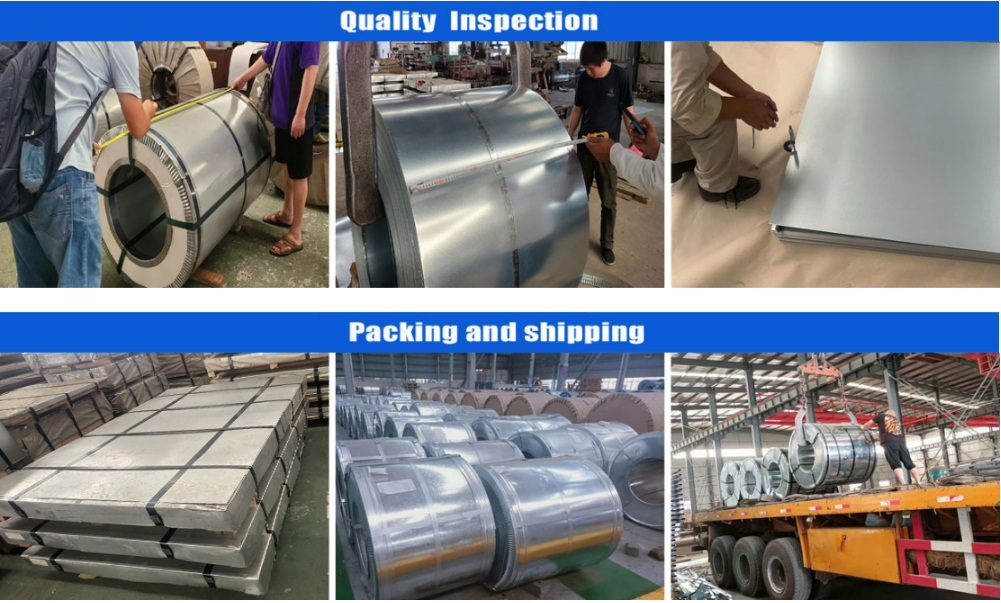

Packaging Export standard packing or according to customers' requirement.
Certificate ISO9001:2008,SGS
Shipment Within 7-15 workdays according to the order quantity
Available Standards And Grades
GB/T5213-2008 din1623 EN 10130-2006 JIS G3141-2005 ISO 3574-1999 ASTM A1008M-07
DC01 ST12 DC01 SPCC CR1 CS Type C
DC03 ST13 DC03 SPCD CR2 CS Type A,B
DC04 ST14,ST15 DC04 SPCE CR3 DS Type A,B
DC05   DC05 SPCF CR4 DDS
DC06 ST16 DC06 SPCG CR5 EDDS
DC07   DC07 - - -
Chemical Composition
Name Chemical Composition
C max Mn max P max S max Alts min Ti max
DC01 0.1 0.5 0.035 0.025 0.020
DC03 0.08 0.45 0.030 0.025 0.020
DC04 0.08 0.40 0.025 0.020 0.020
DC05 0.008 0.30 0.020 0.020 0.015 0.2
DC06 0.008 0.30 0.020 0.020 0.015 0.2
Mechanical
Name Yield Strength Tensile Strength Elongation After Fracture
Nominal Thickness
0.7 0.7-1.0 1.0-1.6 1.6
DC01 130-260 270 28 30 32 34
DC03 120-240 270 32 34 35 36
DC04 120-210 270 36 38 39 40
DC05 110-190 260 36 38 39 40
DC06 100-180 250 39 40 41 42
