DX53D Galvanized Steel Coil

We are located in Anyang, China. Our prices are competitive within the industry. We are professional manufacturer of GI PPGI. Our production portfolio includes: Galvanized Steel Coil, PPGI, Galvanized Corrugated Steel Sheet.

Brand：GNEE

Email:gi@gneesteel.com

Stock:Stock

Material：SGCC,Sgch,G550,Dx51d,Dx52D,Dx53D,etc

Quote Now

Send Email

DX53D Galvanized Steel Coil

Products Description：

Galvanized steel coil sheet is a thin steel sheet that is immersed in a molten zinc bath so that a layer of zinc adheres to the surface. At present, the continuous galvanizing process is mainly used for production, that is, the rolled steel plate is continuously immersed in a plating bath containing molten zinc to make galvanized steel plate; alloyed galvanized steel plate. This kind of steel plate is also made by the hot dip method, but it is heated to about 500 degrees Celsius immediately after coming out of the tank, so that it forms an alloy film of zinc and iron. This kind of galvanized coil has good paint adhesion and weldability.

Product Name	Galvanized Steel Coil/ sheet
Technical Standard	EN10147/EN10142/DIN 17162/JIS G3302/ASTM A653
Grade	Dx51D, Dx52D, Dx53D, DX54D, S220GD, S250GD, S280GD , S350GD, S350GD, S550GD; SGCC
Type	Coil/Sheet/Plate/Strip
Thickness	0.12-6.00mm,or customer's requirement
Width	600mm-1500mm,according to customer's requirement
Type of Coating	Hot Dipped Galvanized Steel(HDGI)/Electro-Galvanised Steel(EGI)
Zinc Coating	20-275g/m2
Surface Treatment	Passivation(C),Oiling(O),Lacquer sealing(L),Phosphating(P),Untreated(U)
Surface Structure	Normal spangle coating(NS),minimized spangle coating(MS),spangle-free(FS)
Quality	Approved by SGS,ISO
ID	508mm/610mm,according to customer's requirement

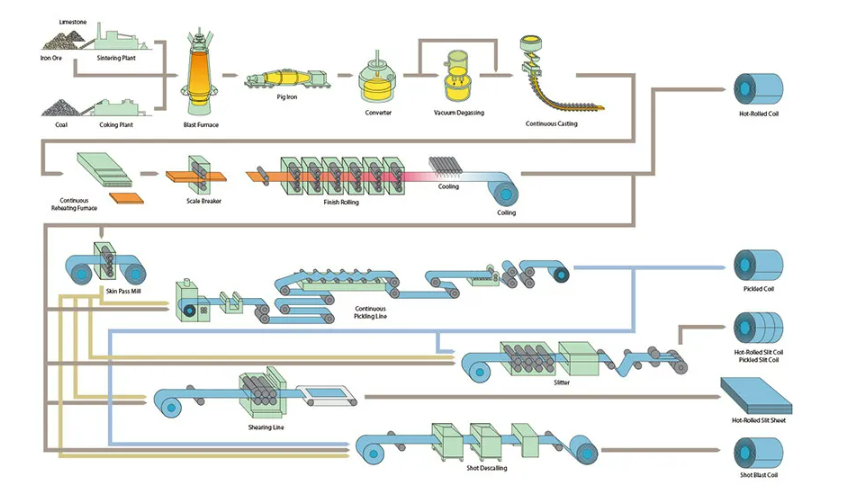

Galvanised Roll Production Process：

Advantages of Galvanized Steel Coil：

1. Durability:

Because it protects against weather, corrosion, and rust, the steel is less likely to be damaged, extending its service life.

2. Low Maintenance:

Galvanized steel components and structures are low-maintenance, saving you maintenance work.

3. Cost-Effectiveness:

The initial cost of galvanized steel may be higher, but because it is a low-maintenance product, you can save on maintenance and repair costs. Furthermore, the coating's durability makes it cost-effective in the long run.

Surface treatment type:

Surface treatment type	Code	Feature
Chromic acid treatment	C	Good corrosion resistance, suitable for bare state
Chromic acid treatment + oiling	S	Good corrosion resistance
Phosphoric acid treatment (including sealing treatment)	P	A certain degree of corrosion resistance, good paint performance
Phosphoric acid treatment (including sealing treatment) + oiling	Q	It has certain corrosion resistance, good paint performance, and prevents rust during transportation and storage
Phosphoric acid treatment (excluding sealing treatment)	T	A certain degree of corrosion resistance, good paint performance
Phosphoric acid treatment (excluding sealing treatment) + oiling	V	Have certain corrosion resistance, good paint performance, and prevent rust
Oiled	O	Prevent rust during transportation and storage
No treatment	M	Suitable for immediate painting

Why Choose GNEE？

Galvanized steel products customer cases:

GNEE's influence extends to more than 200 countries and regions, and galvanized steel coils and plates are exported to Singapore, Vietnam, South Korea and other countries.

About GNEE:

GNEE Steel Trading Center is a professional steel company integrating research, development, production, sales and service. It has eight branches. Annual sales are nearly 1 billion and steel products are about 280,000 tons. It is located in Anyang City with convenient transportation.

Based on the development concept of conquering the world with quality and achieving future with service. We are committed to strict quality control and thoughtful customer service, and our experienced staff are always available to discuss your requirements and ensure every customer is satisfied.

The company's main products include PPGI, galvanized steel, steel plates, round steel, steel pipes, stainless steel products, angle steel, steel piles, H-shaped steel, I-beam, angle steel, channel steel, etc. It has the double guarantee of service and management system.

The main markets are located in North America, South America, Africa, Southeast Asia and Oceania. We have established long-term and win-win partnerships with many large steel production companies such as Baosteel, Laiwu Iron and Steel, Rizhao Iron and Steel, Handan Iron and Steel, Anshan Iron and Steel, and Maanshan Iron and Steel. We always focus on resource integration and adhere to the concept of win-win cooperation. Sincerely hope to establish long-term and regular business with you forever.
