AZ55 Galvalume Steel Coil
AZ55 Galvalume Steel Coil
AZ55 Galvalume Steel Coil
AZ55 Galvalume Steel Coil
AZ55 Galvalume Steel Coil
AZ55 Galvalume Steel Coil
AZ55 Galvalume Steel Coil
AZ55 Galvalume Steel Coil

AZ55 Galvalume Steel Coil

AZ55 aluminum zinc plated steel coil is coated with 55% aluminum zinc alloy by hot dip plating process. It has excellent corrosion resistance and can be used in various applications, such as the automotive industry, shipbuilding industry, construction industry.
Types :Galvalume Steel Coil
Thickness:0.25-0.65mm
Width :600-1250 mm
Inside Diameter :508/610mm
Share:
Introduction

AZ55 Galvalume Steel Coil Description

AZ55 is the standard for galvanized steel sheets and coils used in a variety of applications, including roofing and siding. The AZ55 name refers to the thickness of the coating on the steel plate or coil, which is between 0.375 and 1.5mm (0.015 and 0.059 inches).
AZ55 aluminum zinc plated steel coil is coated with 55% aluminum zinc alloy by hot dip plating process. It has excellent corrosion resistance and can be used in various applications, such as the automotive industry, shipbuilding industry, construction industry, etc. In addition to being an excellent outdoor material, AZ55 aluminized zinc steel coil also has many other advantages. For example, it can be used for electrical equipment manufacturing or decoration, such as fences. In addition to these uses, this steel can also be used in various industrial applications because of its good mechanical properties and corrosion resistance.


Scope of Application

Construction industry: such as roof, internal and external wall panels, sound insulation walls, pipes, garages, etc.
Automotive industry: such as mufflers, exhaust pipes, wiper accessories, fuel tanks, truck containers, etc.
Household appliances: such as refrigerator backplane, air conditioner, microwave oven, LED backlight, electric cabinet, etc
Agricultural use: such as greenhouse, granary, pig farm, chicken coop, etc
Other industries: such as heat exchangers, dryers, etc.

Technical Data

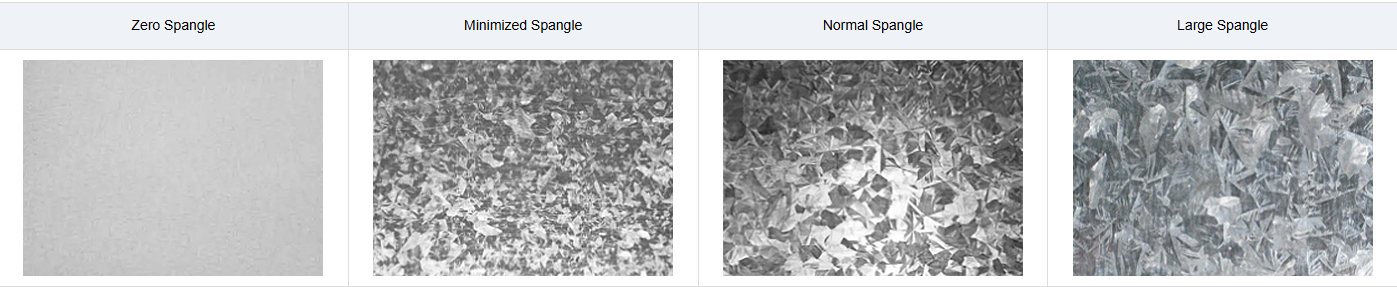

Galvanized Surface Selection

Product Parameters
Product Name AZ55 Galvalume Steel Coil
Thickness 0.12mm-6.00mm
Width 600mm-1500mm
Length 1m-12m, Support Customization
Standard AISI, ASTM, DIN, JIS, GB, JIS, SUS, EN, etc.
Thickness of Aluminum Zinc Coating 30-185g/m²
Content of Al-Zn Coating  Al: 55%, Zn: 43.5%, Si: 1.5%

Chemical Composition
Al Zn Si Fe Cu Cd Pb Sn Ni Close Cr
55-58 41-43 1.5-2 0.25 0.03 0.05 0.01 0.05 0.05 0.05

Mechanical Properties
Grade Yield Strength MPa≥ Tensile Strength MPa≥ Elongation A%≥
DX51D Z/ZM/AZ/AM 240-380 270-500 22
DX52D Z/ZM/AZ/AM 140-300 270-420 26
DX53D Z/ZM/AZ/AM 140-260 270-380 30
DX54D Z/ZM/AZ/AM 120-220 260-350 36
S220GD Z/ZM/AM 220 300 20
S250GD Z/ZM/AZ/AM 250 330 19
S280GD Z/ZM/AM 280 360 18
S300GD A/AM 300 380 18
S320GD Z/ZM/AM 320 390 17
S350GD Z/ZM/AZ/AM 350 420 16
S450GD A/AM 450 480 15
S550GD Z/ZM/AZ/AM 550 550 -
